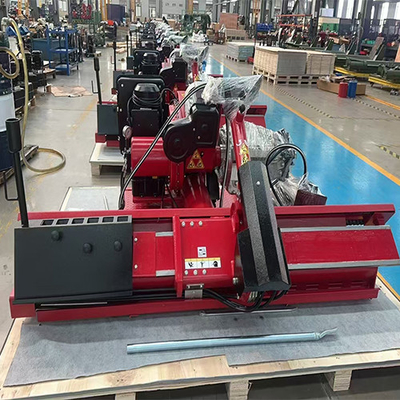

Trucks Tractors Automatic Tire Changer 220v/420V/380v For Workshop

Trucks Tractors Automatic Tire Changer 220v/420V/380v For Workshop

Brand Name: Iter
Model Number: XT-56
MOQ: 1set
Payment Terms: T/T,Western Union
Supply Ability: 1000 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Blue,red Or Grey
Rim Clamping Outside:
14"-56"
Max. Wheel Weight:
2000kg
Max. Wheel Width:
1200mm
Max. Tire Diamter:
2500mm
Operation Control Voltage:
24V
Packaging Details:
carton and plywood box
Supply Ability:
1000 sets/month
Highlight:

Automatic Tire Changer 220v

,

Workshop Automatic Tire Changer

,

Tractors Automatic Tire Changer

Product Description
Trucks Tractors Automatic Tire Changer 220v/420V/380v For Workshop
Product Specifications
Color blue, red or grey
Rim clamping outside 14"-56"
Max. wheel weight 2000kg
Max. wheel width 1200mm
Max. tire diameter 2500mm
Operation control voltage 24V
Product Description

Automatic Truck Tire Changer with high-performance capabilities designed for professional workshop use.

Key Features
  • Advanced bidirectional chuck system with two speed settings for precise handling of various tire sizes and materials
  • Optional Italian-engineered hydraulic pump upgrade for enhanced precision and durability
  • Specialized solution for oversized tires on commercial, agricultural, and industrial vehicles including buses, trucks, tractors, and earth-moving equipment
  • Versatile rim capacity from 14" to 56" for standard, oversized, and ultra-heavy-duty tires
  • Bidirectional chuck mechanism with selectable rotation speeds for flexible mounting/demounting operations
  • Optional high-performance hydraulic pump upgrade available for smoother operation
Technical Data
Model XT-56
Rim diameter 14"-56"
Max. wheel weight 2000KG
Max. wheel width 1200mm
Max. tyre diameter 2500mm
Hydraulic pump motor 3.3kw/4.0kw 380V-3Ph (220V Optional)
Gearbox motor 3.3kw/4.0kw 380v-3ph (220v optional)
Operation control voltage 24V
Weight 1175kg
Package size 2500*2000mm
Voltage 220v/420V/380v
